금속시편 전처리장비
-
DUROLINE M!, M2, M3 & M4
XRF & OES 시료 전처리 장치 DUROLINE M!, M2, M3 & M4 and DUROLINE V1
| 제품구분 | Hardness Testing Instrument |
|---|---|
| 제조사 |  |
주요정보
상세

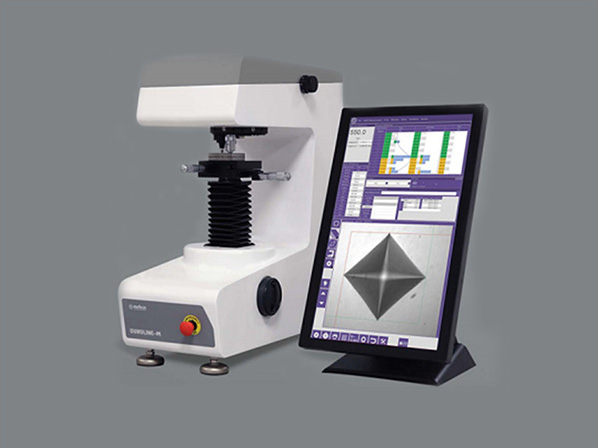

- 1. DUROLINE M!, M2, M3 & M4 : 마이크로 비커스 경도계
(Smart hardness testing with smashing performance), (NEW GENERATION)
- - Complete micro-load range for range for HV/HK scales from 10gf to 1kgf
- - Auto Measurement with Zoom Window for more accurate measurement
- - Flexible Windows 10 based hardness test & measurement programMETKON N-Sure
- - Database generating test results and reports
- - 22'' Full HD Capacitive 10-point Multi-Touch desktop monitor
- - lntegrated high-res camera 420MB/s with USB3.1 interface with zoom capability
- - lntegrated LED light source with controller
- - lntegrated Windows operated mini-pc, Intel, SSD specs
- - lnterface network USB(4), RS-232 (1), HDMI(1)
- - Very robust opto-mechanical system
- - New generation electronics and motors in full system integration ensuring reliable performance
- - Service friendly, remote accessability.
- - Meets latest ISO, ASTM and JIS standards
- - Test Loads: 10, 25, 50, 100, 200, 300, 500, 1000 gf
- - 고해상도 6.4 MP USB3.1 CCD 카메라
- 2. DUROLINE V1 비커스 경도계
- - Test Loads: 300gf, 500gf, 1kgf, 2kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf
- - 고해상도 6.4 MP USB3.1 CCD 카메라
